Project details & progress update

Primary Project Objectives

  • Develope a comprehensive and an optimized FEA program for heat transfer simulations in MATLAB from scratch; allowing conduction, convection and thermal expansion analysis in solids interacting with a chemically reacting/inert gas mixture as a heat source
  • Validate the MATLAB model experimentally via a custom 3D printed test rig having IR temperature sensor and laser-cut Aluminum plate, using LabVIEW for data acquisition
  • Benchmark the performance of MATLAB model against COMSOL Multiphysics simulations
  • Use Projection-based Model Order Reduction technique to optimize MATLAB model
  • Perform topology/shape/parametric optimization of plate geometry to enhance heat transfer rates

Secondary Project Objectives

  • Try using the developed MATLAB program to simulate and analyse a complex system, such as a brick stack in a thermal energy storage system
Click here to see project notes

Some encouraging results so far

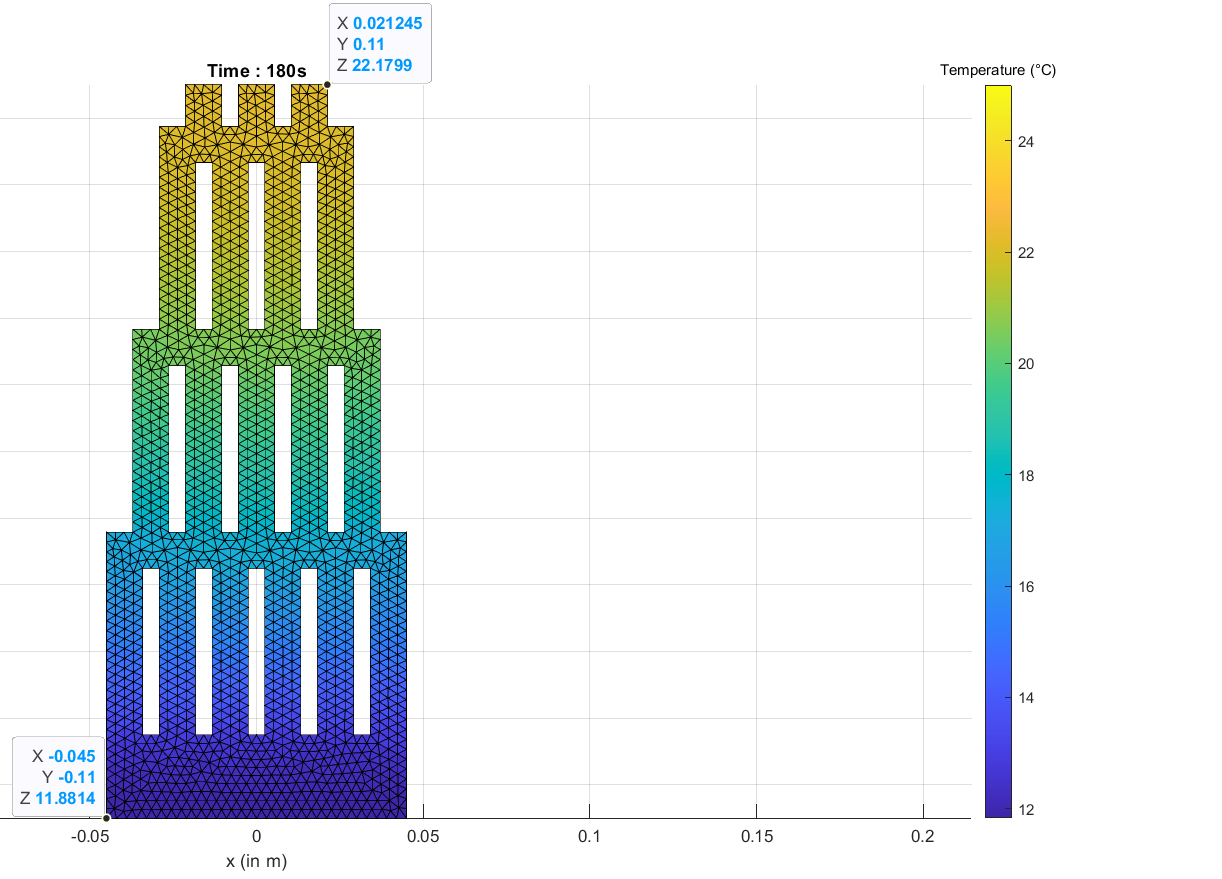

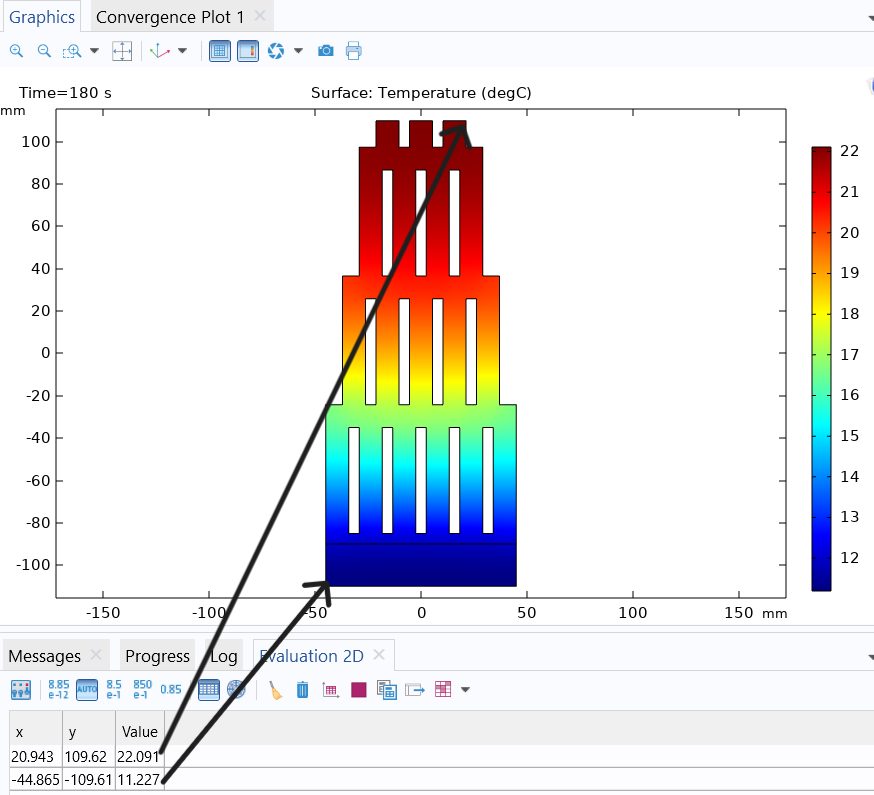

Temperature distribution in Al 5052 plate using MATLAB program (left), and comparing it against COMSOL result (right)

  • Initial temperature of plate is 25 degC, and convective cooling occurs in the bottom region of plate with a heat transfer coefficient of 50 W/m2/K and a constant cooling medium temperature of 0 degC
  • Temperature distribution is shown at 180 sec., calculating it by considering a timestep of 5 sec. using implicit Euler method
  • Relative error in the temperature values at the two corners obtained using MATLAB and COMSOL is less than 5%

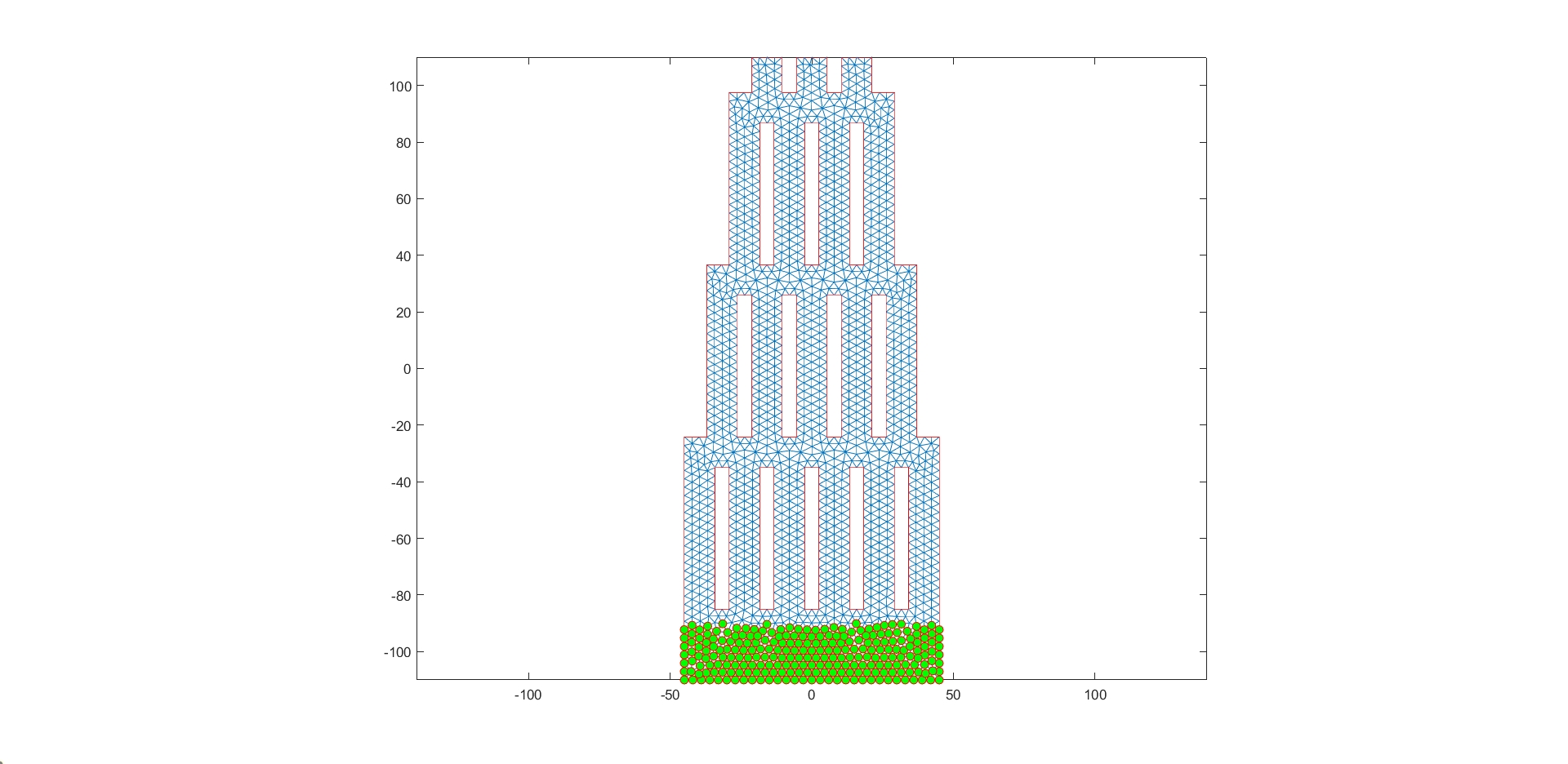

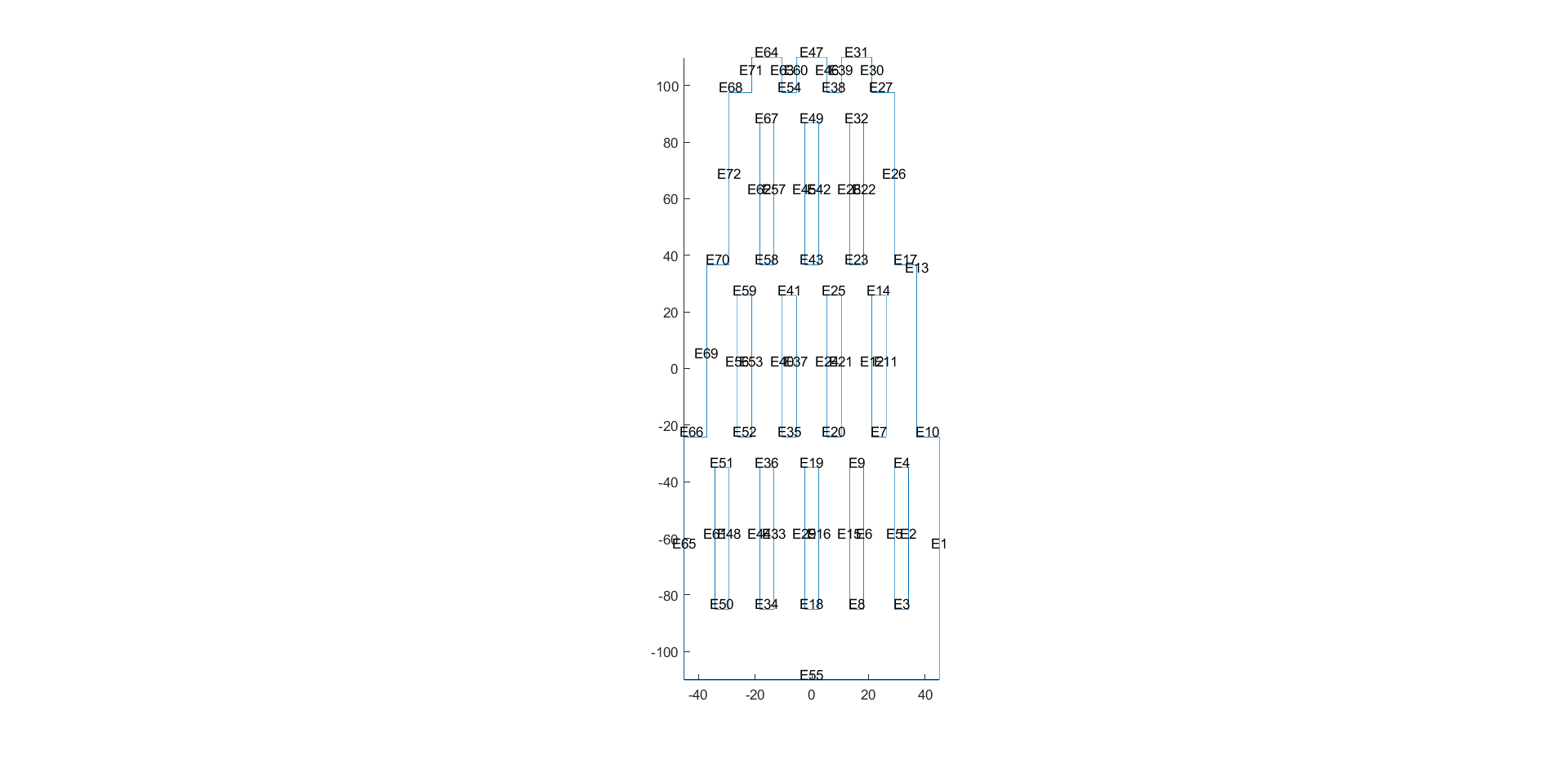

Edge labelling the plate geometry (for specifying boundary conditions)(left), and a mesh showing nodes subjected to convective cooling (right)

  • CAD model of plate is made in Onshape and imported in MATLAB as an STL file
  • The region of convective cooling represents the conditions in the test rig

Simulation Animation and Test Rig Setup

Cooling of a metal plate immersed partially in a cold bath

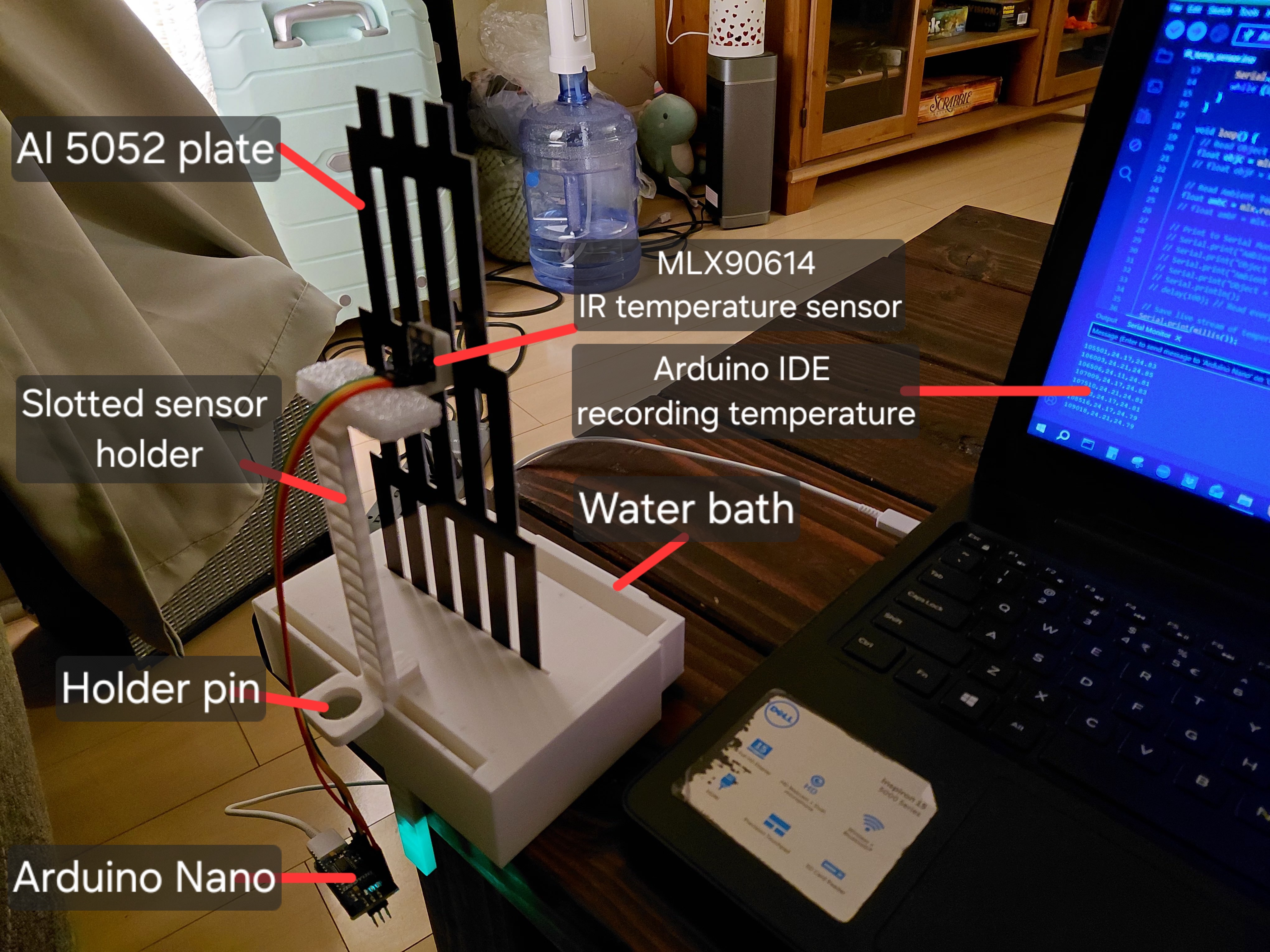

Test Rig
